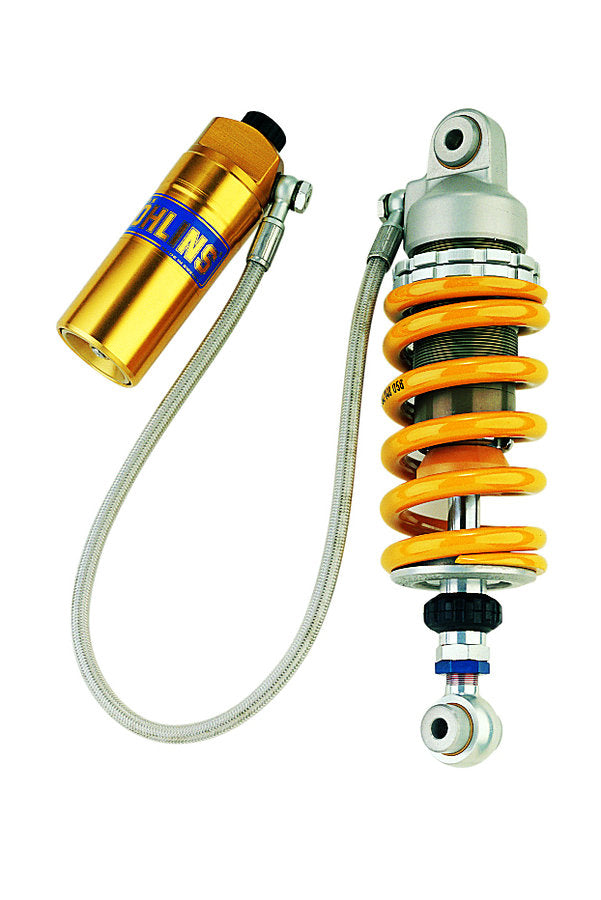

Ohlins STX 46 Rear Shock YA467 - MT03/YZF-R3

Öhlins STX 46 Supersport Shock Absorber YA 467mt

Brand new shock, sitting in the box and on display.

Never been fitted to a bike.

Fits -

Yamaha R3 2015-2020

Yamaha MT-03 2017-2020

Yamaha R25 2014-2020

S

Single tube

46

Piston diameter: 46 mm

H

High pressure gas type of shock absorber with hose mounted external reservoir.

R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1

Adjustable compression damping. Adjuster wheel or slot on the reservoir.

L

Adjustable length.

---

Technical data

Length:	277 mm
Stroke:	46 mm
Rate N/mm:	170 N/mm
Position:	rear
Mounted spring:	01104-69
Packaging unit:	pieces
